Specifications

Gate Valves

All valves are made from Bronze and available in Single flange or Double flange in these sizes

15, 25, 40, 50, 65, 80, 100, 125,150, 200, 250 mm.

Flange dimensions, Face to Face lengths, Drillings, PCDs and Hand wheels can be customized as per client requirements. Working temperatures and pressures as well as locking mechanisms are as per the industry standards relevant to oil cooled transformers.

Radiator Valves

All valves are Square or Round shaped made from Aluminium or Steel supplied with 2x NBR Quad or O-rings. Fasteners are available upon request in both Round and Oval studed Stainless steel and Galvanized Steel.

Valves sizes are available in 75 mm to 300 mm.

Flange dimensions, Face to Face lengths, Drillings, PCDs and levers can be customized as per client requirements. Working temperatures and pressures as well as locking mechanisms are as per the industry standards relevant to oil cooled transformers.

Oil Sampling Needle Valves

All valves are made from brass and are available in male or female threadec ends with plugs in these sizes

1/4" and 3/8 " .

Working temperatures and pressures as well locking mechanisms are as per the industry standards relevant to oil cooled transformers.

Pressure Relief Valves

These are the available types we stock T 50, T 80, T 125, LPRD and XPRD.

All set pressures in kPa and switching are designed as per client requirements.

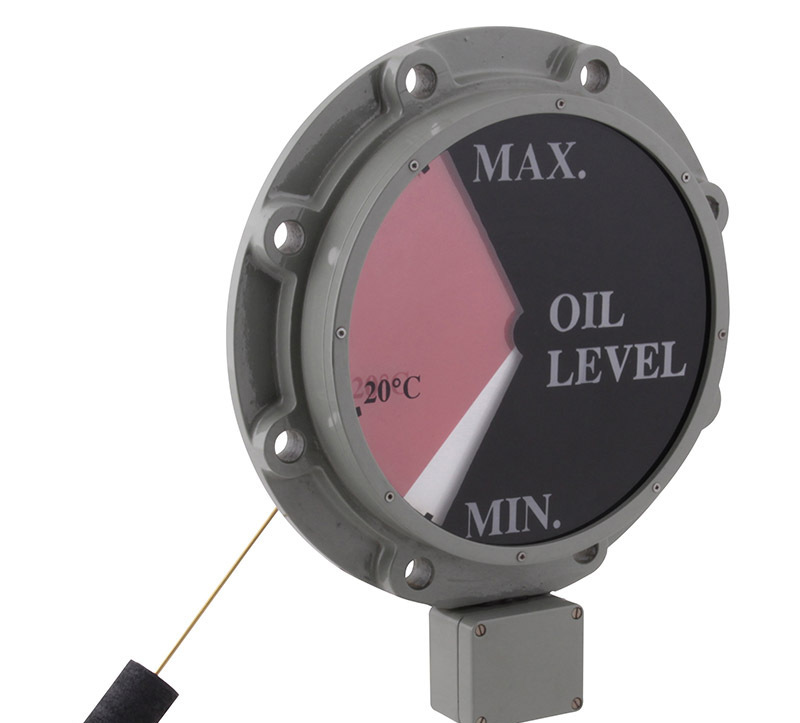

Magnetic Oil Level Indicator

Types: LA14, LA140, LA22, LA220 and LB 22, LB 220.

Float Movement: Axial and Radial.

Float length: 325 mm - 1000 mm
